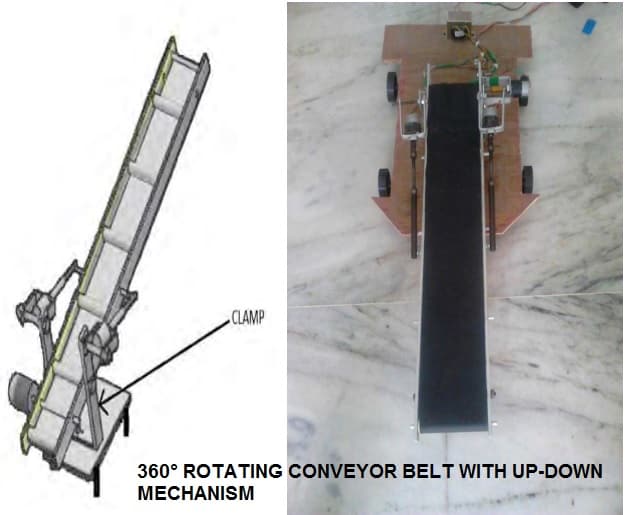

360° ROTATING CONVEYOR BELT WITH UP-DOWN MECHANISM

360° ROTATING CONVEYOR BELT WITH UP-DOWN MECHANISM

Abstract:-
Bulk material transportation requirements have continued to press the belt conveyor industry to carry higher tonnages some distances and more diverse routes. In order keep up, significant technology advances have been required in the field of system design, analysis and numerical simulation. The application of traditional components in non-traditional applications requiring horizontal curves and intermediate drives have changed and expanded belt conveyor possibilities. Examples of complex conveying applications along with the numerical tools required to insure reliability and availability will be reviewed. Although the title of this presentation
indicates “new” developments in belt conveyor technology will be presented.
What is also “new” are the system design tools and methods used to put these components together into unique conveyance systems designed to solve ever expanding bulk material handling needs. In industry for material handling many fixed conveyor belt is required. So the installation and maintains charge of fixed conveyor belt is increased for solution of this problem. New creation is 360° rotating flexible conveyor belt.
This conveyor belt is use in place of fixed conveyor it use any place like industry, warehouse, food industry any ware easily. And the installation and maintains charge
is decreased place of number of fixed belt conveyor.
So in all matter it is the better than fixed conveyor belt.

360° ROTATING CONVEYOR BELT WITH UP-DOWN MECHANISM
360° ROTATING CONVEYOR BELT WITH UP-DOWN MECHANISM

OBJECTIVE

•Now in industries only fixed type belt conveyor is available.
•But we will make the conveyor belt such that it can be rotate 360°and up-down mechanism with proto type model.
METHODOLOGY
•Visit industries
•Evaluate current application
•Collection of Data
•Designing
•Analysis
•Collection of raw material
•Fabrication work
•Make a proto type model
•Submission of project.
Flat Belts
•Flat belts are used to transmit power from one shaft to another.
•They are generally classified as either small woven endless belts or higher power flat belts.
•The woven endless belts are especially useful where minimum vibration is required at the driven pulley due to semi-elastic material used in construction.
The higher power flat belts are often useful because they eliminate the need to high belt tension used to grip pulleys, which in turn reduces the load on the shaft bearings.
•The material used for high power flat belts is sticky yet abrasion-resistant rubber compounds.
Advantages
•Can be operated easily some distances.
•Carry all kinds of loads.
•Noiseless as compared to chain conveyors.
•Much simpler to maintain and don’t require any major lubrication system like chain conveyors.
•Their reliability has been proved over a long period by its use in the industry.
•Environmentally more acceptable.
•Low labor and low energy requirements.
•Unlike screw conveyors, belt conveyors can be easily used for performing processes functions in a production line.
•It’s rotated at 360 degree
.
