Flywheel Based Battery Charger Mechanical Project
- This project, as name suggest is about fabrication of a battery charger that uses flywheelfor the purpose.
- In its simple construction the project model uses a flywheel made up of steel, MDF, ironetc. basically the flywheel is made using two and more component for durability and costsaving. This flywheel is made to run by human power, which is transmitted to the sameusing paddle, sprocket, chain and free wheel mechanism.
- The mechanical power fromthis flywheel is then transmitted to the electricity generator using transmission thatmultiplicities the speed of flywheel and then transmit it to the generator unit.
- Themechanical power from the flywheel thus gets converted into electric power that is thereafter stored in a secondary battery using a charging circuit that has various functionalitiesassociated with it like wise overcharging protection, low discharge cut off, high voltagecut off, current back flow proofing etc.
- The whole assembly is put together in a spaceframe made up of iron. As far aspossible the frame is made portableand easy to carry.
The capacity of the project can bevaried from 1.5 volt battery chargingto 12 volt battery charging. The sizeof the project work varies as that ofcapacity. - This project has very potential toconsidering commercial point ofview. As load shedding is major on going issue in remote, rural as well as urban area.This device can perform well for agricultural as home use. In urban area this device canalso perform the work of exercising machine as well as can also be used for back toelectricity.
- Thus the device can play multiple roles in everyday life.The project work can be made on full scale as well as scale down version, but in bothcases the project is fully functional or working in nature.
Automobile Engineering Projects List - Abstract , Report
New Mechanical Projects 2020 ( All Projects Post Index List )
Related posts:
Foot Path Electricity Generation System Mechanical Project
Swing Electricity Generation System Mechanical Project
Solar Based Grass Cutter Project report Free Download
COMBINATION OF PEDAL–POWERED HACKSAW,CHARGER AND WASHING MACHINE

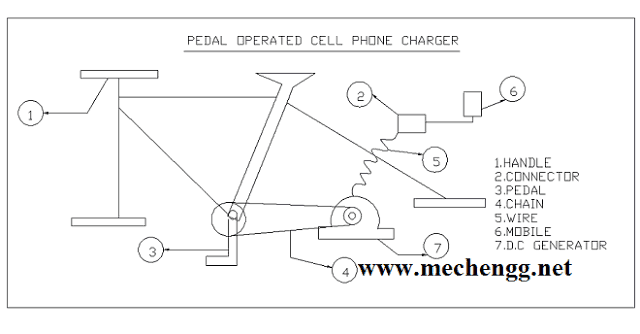

PEDAL OPERATED CELL PHONE CHARGER

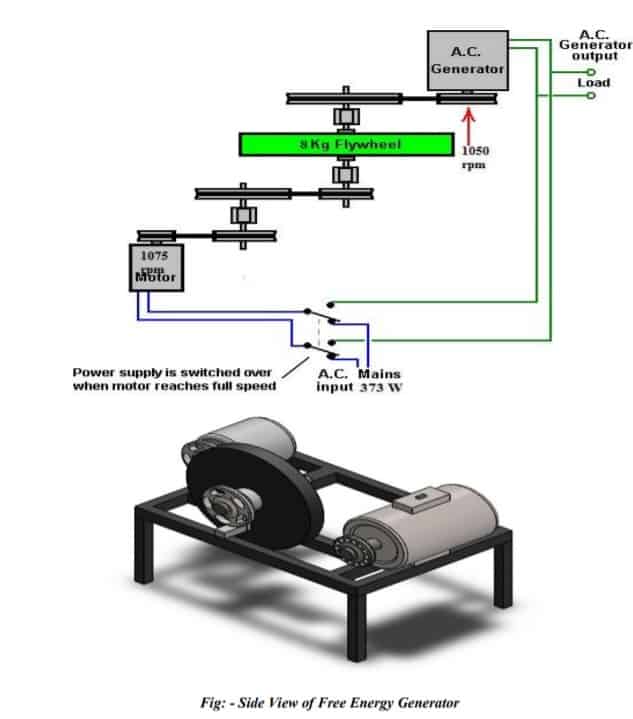

Review of Free Energy Generator using Flywheel
