MODIFIED AIR COOLER WITH SPLIT COOLING PTOJECT REPORT DOWNLOAD
什么是拆分空调系统？

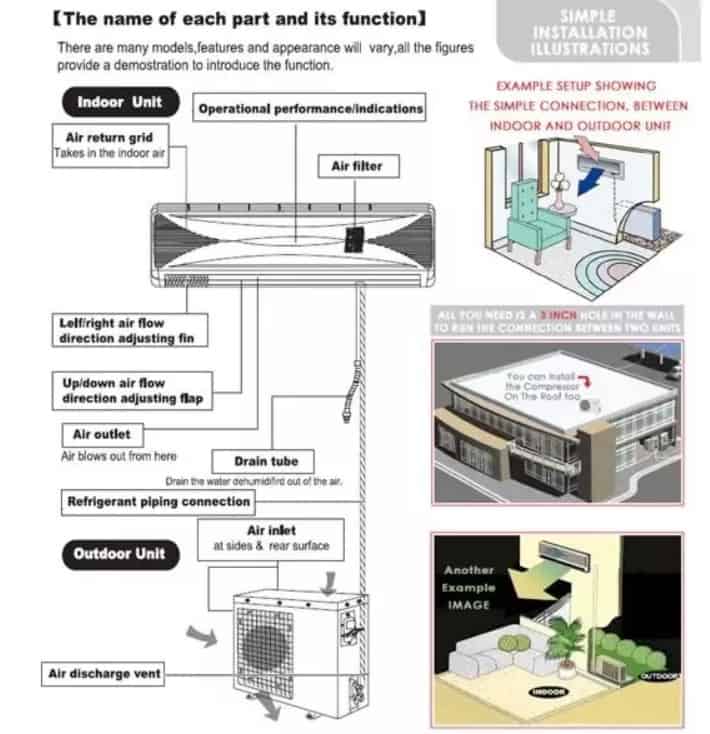

A split air conditioner consists of two main parts: the outdoor unit and the indoor unit. The outdoor unit is installed on or near the wall outside of the room or space that you wish to cool. The unit houses the compressor, condenser coil and the expansion coil or capillary tubing. The sleek-looking indoor unit contains the cooling coil, a long blower and an air filter.
分体式空调用于小型房间和大厅，通常在无法安装窗户空调的地方。然而，这几天许多人甚至更喜欢分裂空调装置，即使是窗户空调的地方也可以安装。
There are two main parts of the split air conditioner. These are:
户外单位：This unit houses important components of the air conditioner like the compressor, condenser coil and also the expansion coil or capillary tubing. This unit is installed outside the room or office space which is to be cooled. The compressor is the maximum noise making part of the air conditioner, and since in the split air conditioner, it is located outside the room, the major source of noise is eliminated. In the outdoor unit there is a fan that blows air over the condenser thus cooling the compressed Freon gas in it. This gas passes through the expansion coil and gets converted into low pressure, low temperature partial gas and partial liquid Freon fluid.
2）室内单位：它是室内机，在房间或办公室内产生冷却效果。这是一个美丽的高大单位，通常是白色的白色，但这些日子的室内单位的许多时尚型号正在推出。室内单元容纳蒸发器线圈或冷却线圈，长吹风机和过滤器。在从膨胀线圈通过后，冷却的氟利昂流体进入冷却盘管。鼓风机从房间吮吸热，潮湿和过滤的空气，并将其吹过冷却盘管。随着空气通过冷却卷，其温度急剧减少，并且还失去了过量的水分。凉爽和干燥的空气进入房间，根据要求，保持舒适的条件约为25-27摄氏度。

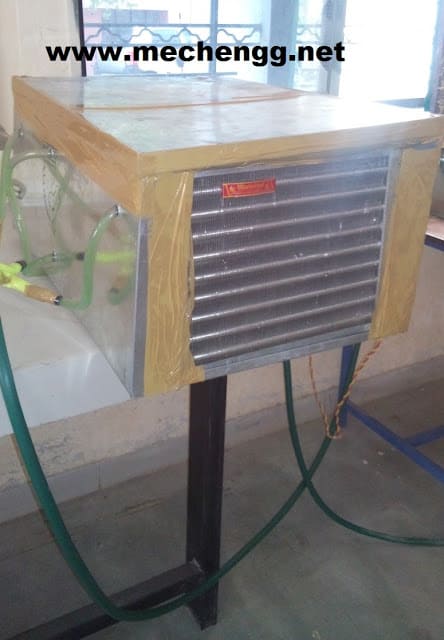

分开冷却装置
分开冷却装置consist of three heat exchangers. The temperature of water of the Evaporative cooler decreases gradually after starting the cooler. This cooled water is supplied to the Split Cooling Unit. When the air passes through the heat exchanger, it losses its heat and cooled air of 25oC is supplied to the room without increasing its humidity. This unit can be used in non coastal region.
结论与未来范围
The experimental investigation above confirmed that split unit demonstrated reasonable potential for use as a wetted media in evaporative cooling systems. Consequently, it creates the possibility of new sustainable engineering systems where either cooling or humidifying is required. As the unit maintain the temperature 25°c and it has low cost than AC so it will be good replacement for AC..
For the future modifications, if the density of the split unit is reduced then we can achieve better performance than that achieved. Also we can increase the thickness of the pad to achieve good performance.
Calculation and Design , experimental procedure is given in the report which is Submitted by Mr.Chetan Sonwane.
点击这里下载：
关于作者：
This Project is Done by Mr. Chetan Sonawane.
他是机械工程师，在分体式冷却系统中进行修改。
You can Contact him onChetan..sonawane7373@gmail.com
